JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Brand Name : Hoan

Model Number : JMZ-TK1-40A

Place of Origin : China

MOQ : 4

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Material : Spring steel

Port : Xi'an or Specified

Temperature Range : -40°F to 180°F

Color : Silver

Applicable Industries : Energy & Mining

Warranty : 1 year

Operating Temperature : -40°C to 100°C

Resilience : High

Shock Absorption : Excellent

Durability : Long-lasting

Usage : Isolate vibrations

Installation Method : Mounting

Customization : Available upon request

Shape : Cylindrical

Isolation Efficiency : Up to 95%

Contact Now

JMZ-TK1-40A Friction Damping Vibration Isolators
The Ultimate Solution for Vibration Control in High-Precision Equipment
JMZ-TK Series
Guarding the "Precise Hearts" of "Made in China": The Application of JMZ-TK in High-End Industrial Machine Tools
High-end CNC (Computer Numerical Control) machine tools, known as "industrial machine tools," are the cornerstone of the manufacturing industry. Their machining precision directly determines product quality, and vibration is the primary factor affecting this precision. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan Microwave provide outstanding performance for maintaining stable operation of these precision systems.
Dual Protection Against Vibration
In machine tool applications, vibration originates from two main sources:
  • External Isolation: Effectively blocks transmission of environmental vibrations through the foundation, creating a static reference platform for machining processes.
  • Internal Energy Dissipation: High damping characteristics quickly attenuate internal vibrations from spindle rotation and cutting operations, improving surface finish and extending tool life.
Performance Benefits
The JMZ-TK series enables micron-level precision in critical applications including:
  • Aerospace titanium alloy components
  • Medical device precision implants
  • Optical lens molds

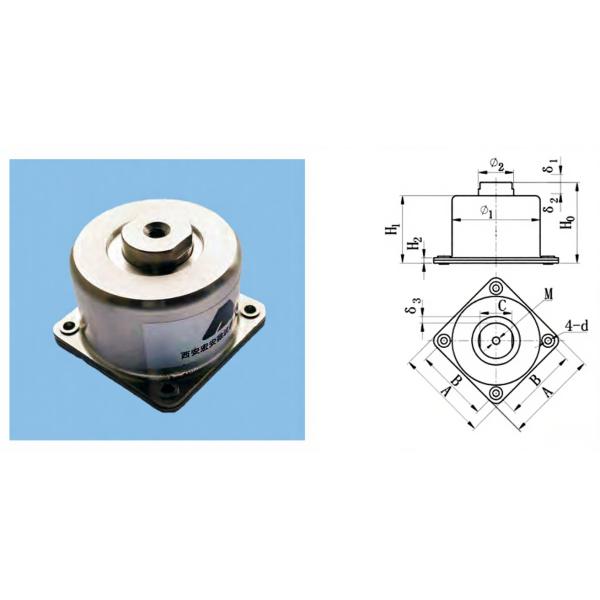

Structural Dimensions
JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining
Installation Dimensions (mm)
Model B M d A C ∅1 ∅2 H1 H2
JMZ-TK-2.5A～8A 46 6 4.1 58 20 55 22 36 3.6
JMZ-TK1-25A/40A/50A 63 12 8.2 78 20 70 22 56 6
Technical Parameters
Model Nominal Load (N) Load Range (N) Natural Frequency fn≤(Hz) Loading Working Height H0±1(mm) Limit Displacement Maximum Vibration Transmissibility ηv≤ Impact Resistance Test Service Life (year)
JMZ-TK-2.5A 25 20～30 33 42 4 3 100g 10
JMZ-TK-4A 40 30～50 20 70 7 3 60g 10
JMZ-TK1-25A 250 200～300
JMZ-TK1-40A 400 300～480
JMZ-TK1-50A 500 400～600
